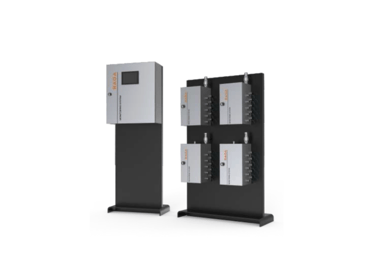

TECHNICAL SPECIFICATION

APPLICATION

• Number of Connections: 4 / 8 / 16 Nos

• Maximum Working Pressure: 20 Bar

• Minimum Flow Rate: 0.5 L/min

• Maximum Temperature: 100 °C

• Dimensions (H×W×D): 350 × 300 × 250 mm – 650 × 300 × 250 mm

• Connection Size (Tube): 4 / 6 / 8 mm

• Power Supply: 24 V

• Output Type: Digital Pulse Signal

• Monitoring and diagnostics for jet, spot, and line cooling systems

• Real-time detection of blockages, breakages, and leakages

• Suitable for integration with new or existing jet cooling systems

• Enables graphical traceability and predictive maintenance for each shot
