TECHNICAL SPECIFICATION

APPLICATION

• Clamping Force: 3,800 – 8,300 kN

• Closing Stroke: 600 – 825 mm

• Ejector Stroke: 125 – 180 mm

• Die Height (min–max): 300 – 1,000 mm

• Platen Size: 1,015 × 1,015 mm to 1,400 × 1,400 mm

• Space Between Tie Bars: 675 – 925 mm

• Shot Position: 0 – 350 mm

• Maximum Casting Force: 440 – 880 kN

• Injection Plunger Diameter: 50 – 120 mm

• Casting Stroke: 700 – 800 mm

• Casting Volume: 785 – 6,032 cm³

• Specific Injection Pressure: 1,853 – 2,083 bar

• Machine Weight (approx.): 15,045 – 35,260 kg

• Machine Dimensions (L×W×H): 6,818 × 2,560 × 3,052 mm to 9,406 × 3,123 × 4,222 mm

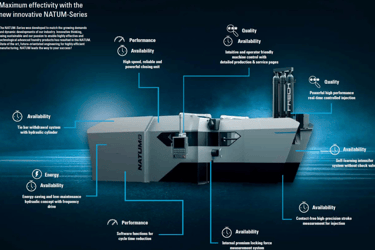

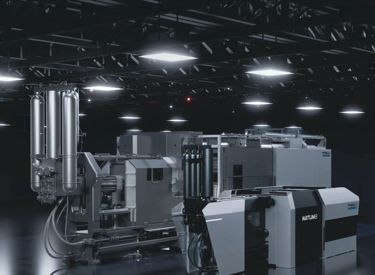

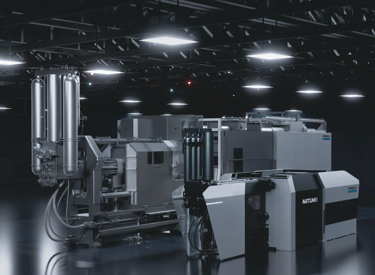

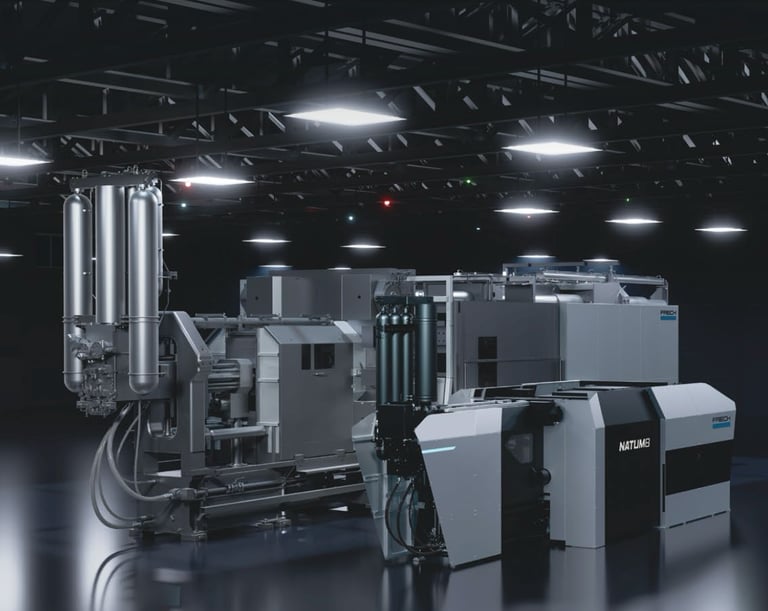

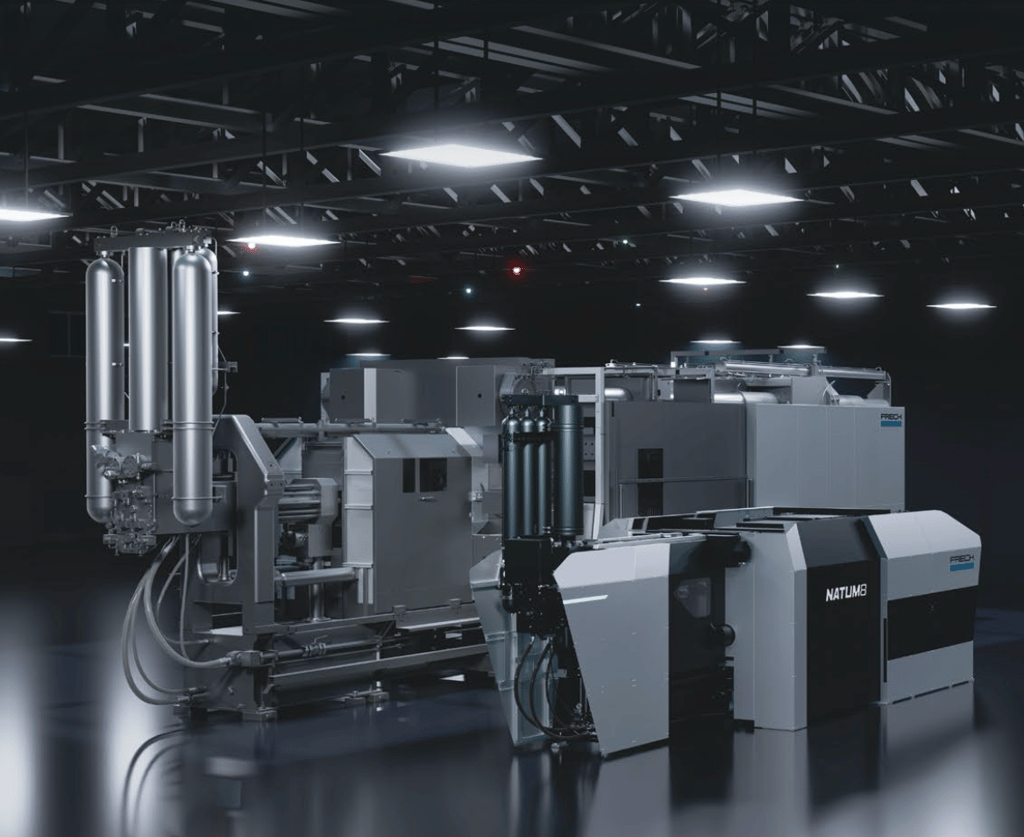

• Premium cold chamber die-casting machines developed for intelligent and energy-efficient production.

• Ideal for manufacturing thin-walled, precision aluminum parts and high-quality structural components used in automotive lightweighting, EV systems, and advanced industrial applications.
