TECHNICAL SPECIFICATION

APPLICATION

• Locking Force: 900 – 3,150 kN

• Closing Stroke: 280 – 500 mm

• Ejector Stroke: 70 – 120 mm

• Die Height (min–max): 160 – 700 mm

• Platen Size: 540 × 540 mm to 900 × 900 mm

• Space Between Tie Bars: 350 × 350 mm to 550 × 550 mm

• Shot Position: 0 – 120 mm

• Maximum Casting Force: 75 – 250 kN

• Injection Plunger Diameter: 55 – 100 mm

• Casting Stroke: 130 – 250 mm

• Casting Volume: 141 – 1,455 cm³

• Specific Injection Pressure: 226 – 201 daN/cm²

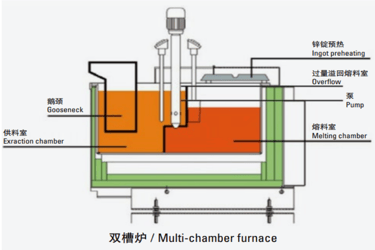

• Melting Capacity: 170 – 520 kg/h

• Machine Weight (approx.): 5,500 – 12,000 kg

• Machine Dimensions (L×W×H): 4,400 × 1,650 × 2,250 mm to 6,700 × 2,800 × 3,050 mm

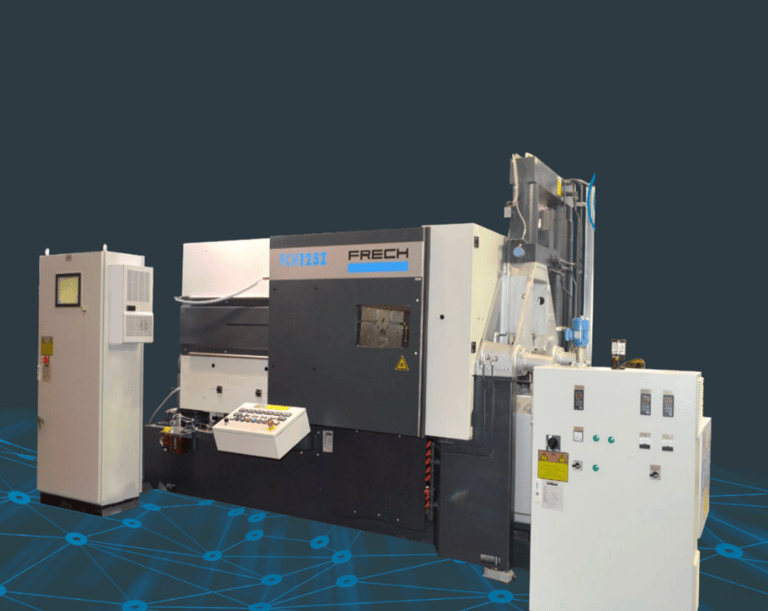

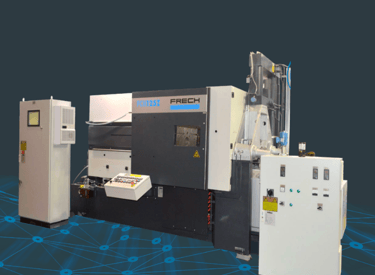

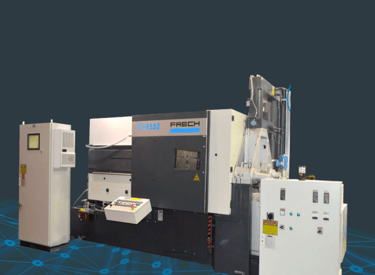

• High performance hot chamber die casting machines optimized for magnesium alloys.

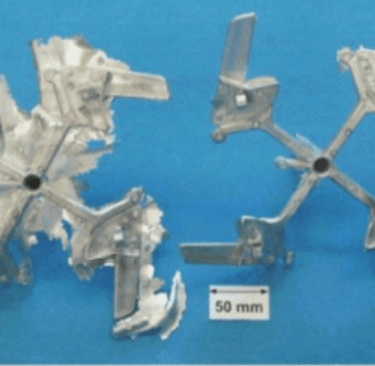

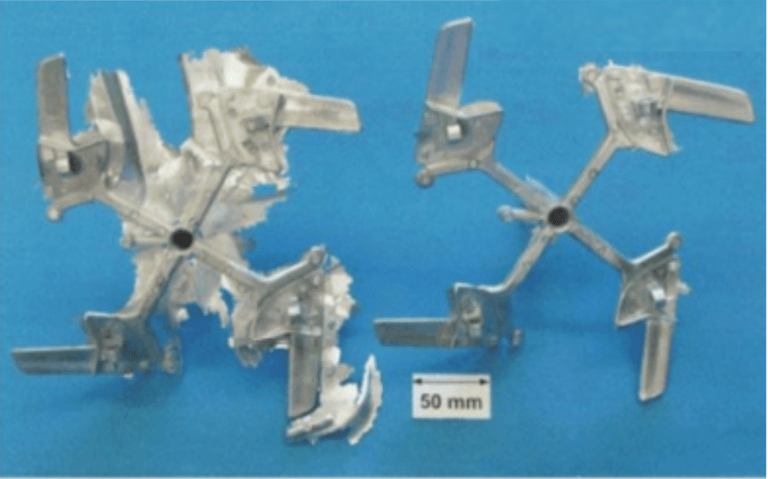

• Designed for lightweight, high strength parts with exceptional dimensional stability, ideal for automotive, aerospace, and electronics industries where precision and weight reduction are key.
