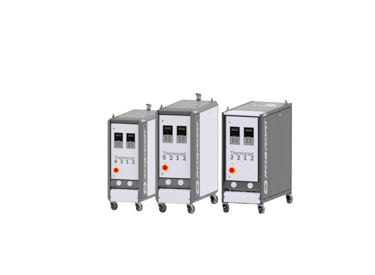

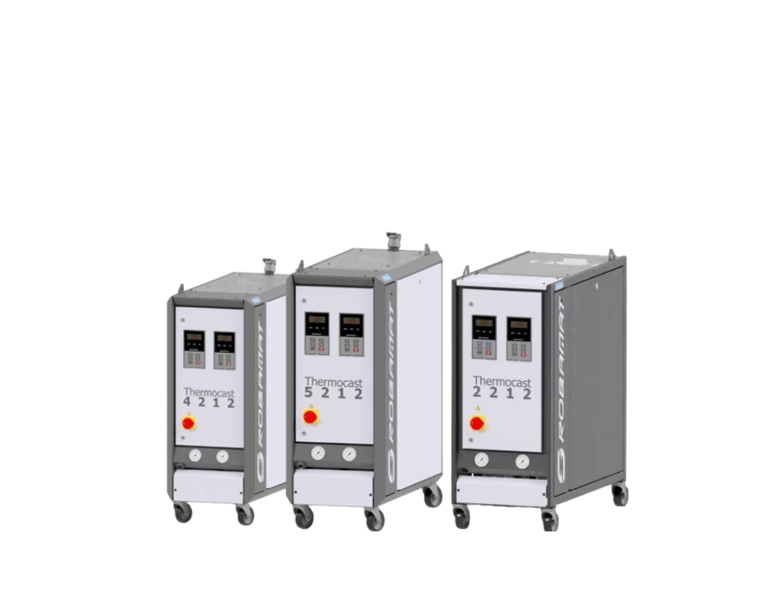

OIL TECHNICAL SPECIFICATION

APPLICATION

• Heat Transfer Medium: Thermal Oil

• Maximum Temperature: 250 – 350 °C

• Heating Capacity: 10 – 30 kW

• Cooling Capacity: 25 – 50 kW

• Maximum Flow Rate: 25 – 80 L/min

• Tank Capacity: 20 – 80 L

• Pump Type: PM1 / PM3

• Circuit Configuration: Single or Dual

• Dimensions (L×W×H): 1,080 × 530 × 1,300 mm – 1,200 × 685 × 1,300 mm

• Unit Weight: 180 – 390 kg

• Mid-to-large die-casting machines designed for general high-efficiency production.

• Ideal for manufacturing high-precision aluminum and magnesium components in the automotive, motorcycle, electronics, and industrial machinery industries.

WATER TECHNICAL SPECIFICATION

• Heat Transfer Medium: Water

• Maximum Temperature: 120 – 160 °C

• Heating Capacity: 4.6 – 18 kW

• Cooling Capacity: 25 – 70 kW

• Maximum Flow Rate: 35 – 80 L/min

• Tank Capacity: 20 – 60 L

• Pump Type: PM1V / PM3

• Circuit Configuration: Single or Dual

• Dimensions (L×W×H): 1,000 × 530 × 965 mm – 1,120 × 685 × 1,300 mm

• Unit Weight: 180 – 370 kg
