TECHNICAL SPECIFICATION

APPLICATION

• Clamping Force: 3,800 – 16,800 kN

• Platen Size: 1,015 × 1,015 mm to 1,950 × 1,950 mm

• Space Between Tie Bars: 675 – 1,300 mm

• Shot Position: 0 – 430 mm (depending on model)

• Maximum Casting Force: 409 – 1,330 kN

• Injection Plunger Diameter: 50 – 160 mm

• Casting Stroke: 600 – 900 mm

• Casting Volume: 785 – 12,064 cm³

• Specific Injection Pressure: 1,853 – 2,289 bar

• Casting Area: 182 – 2,935 cm²

• Machine Weight (approx.): 15,000 – 76,000 kg

• Machine Dimensions (L×W×H): 7,045 × 2,564 × 3,077 mm to 11,568 × 4,106 × 4,992 mm

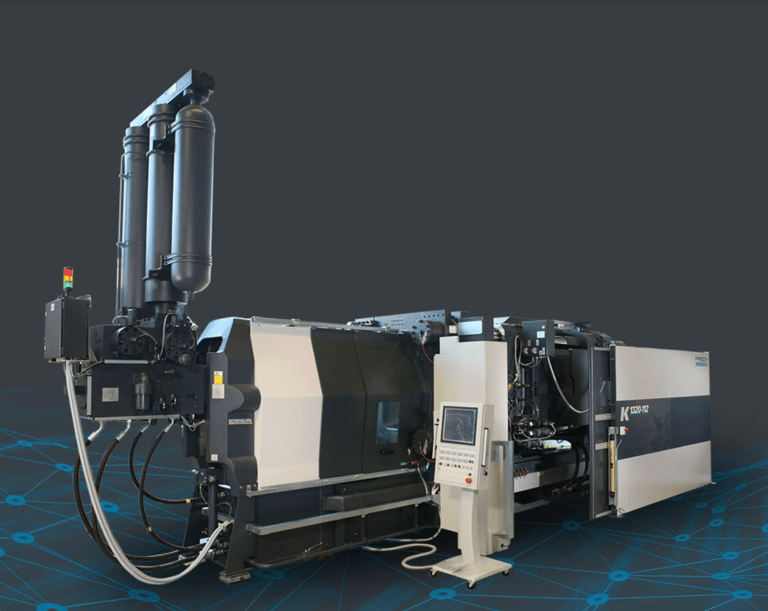

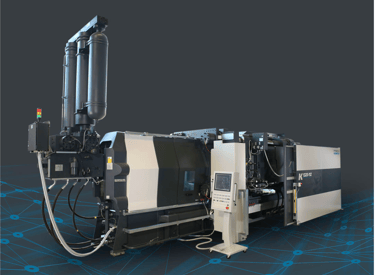

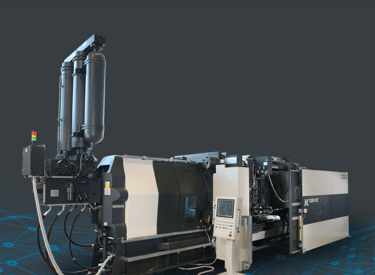

• Mid-to-large die-casting machines designed for general high-efficiency production.

• Ideal for manufacturing high-precision aluminum and magnesium components in the automotive, motorcycle, electronics, and industrial machinery industries.
