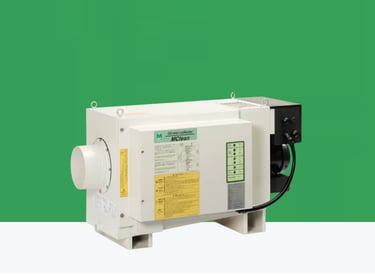

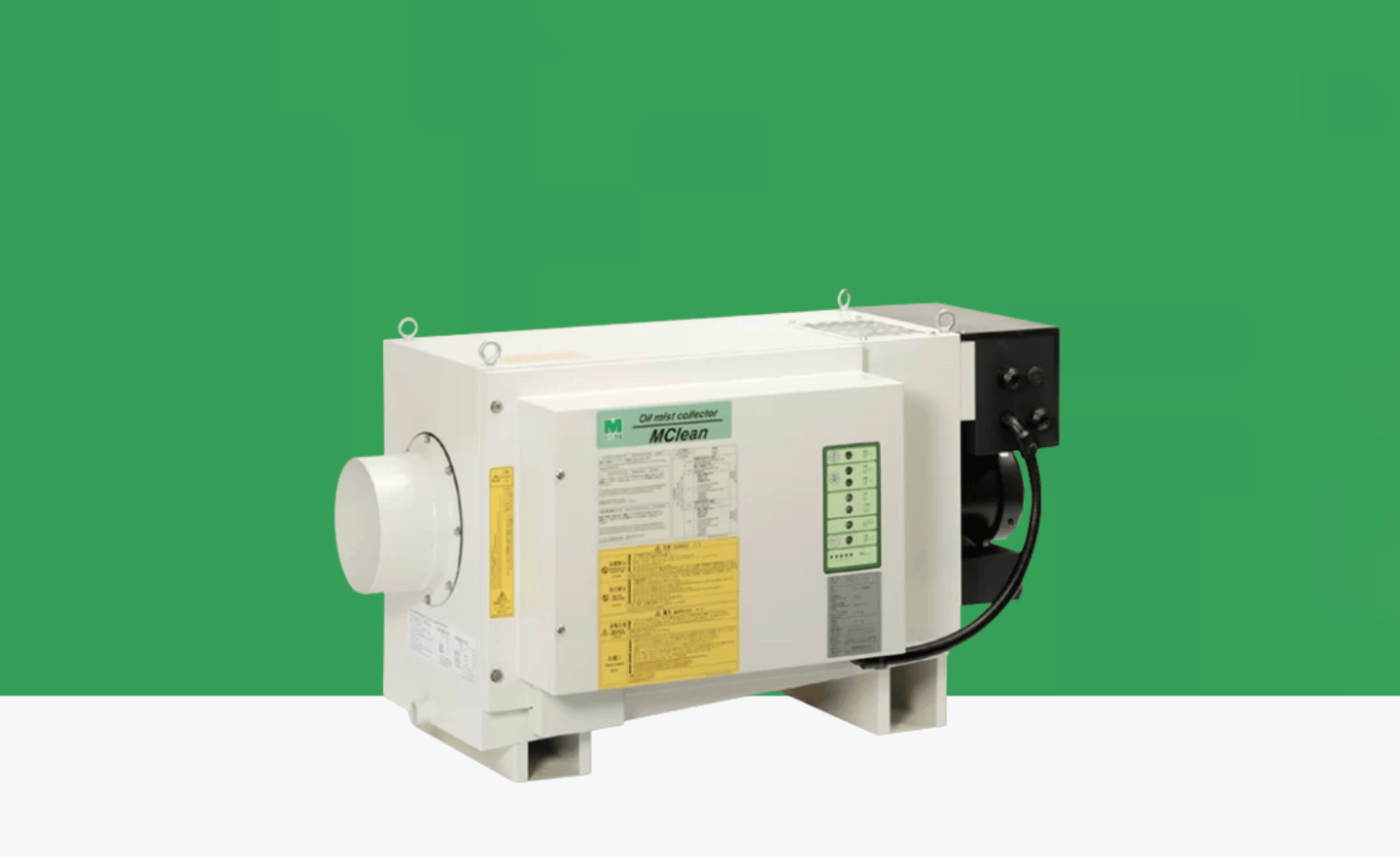

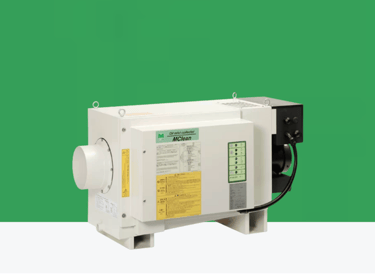

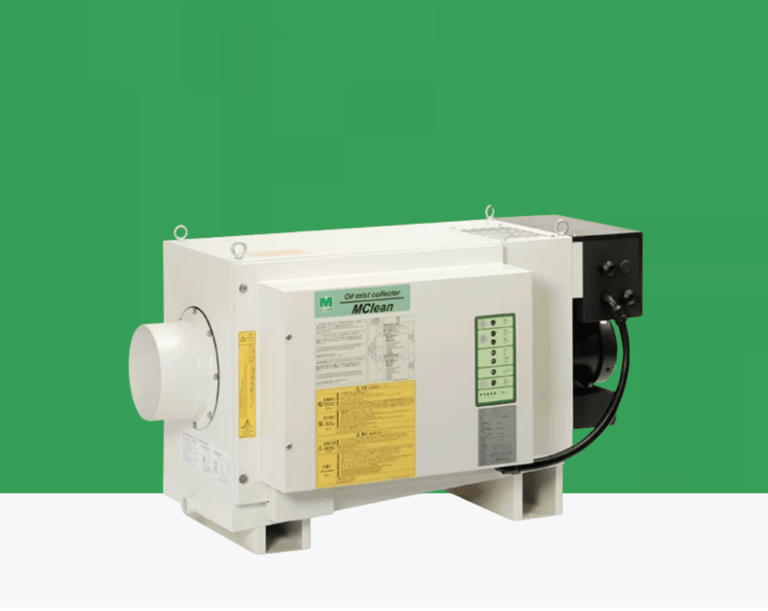

TECHNICAL SPECIFICATION

APPLICATION

• Power supply: Single-phase / Three-phase circuit 200V AC ±10%, 50/60Hz

• Related air volume: 8 – 60 m³/min

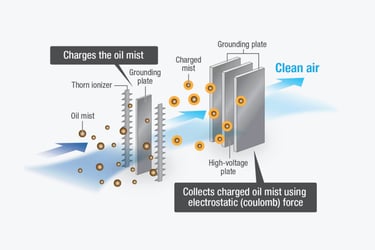

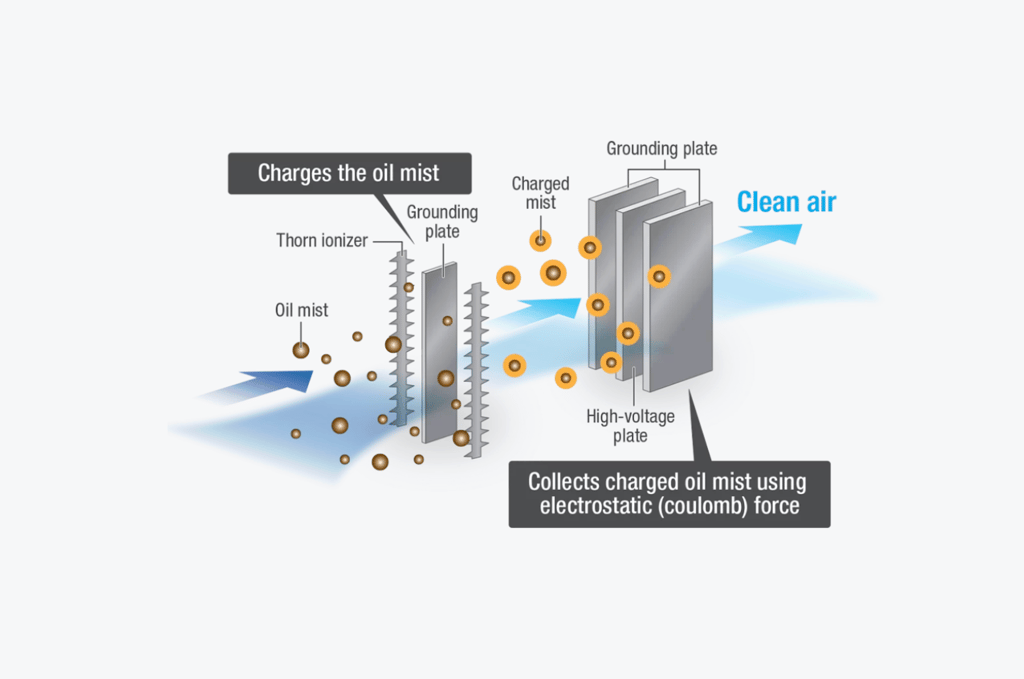

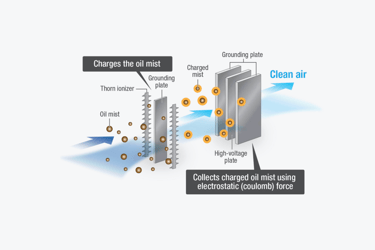

• Collection method: Two-stage type electrostatic mist collection

• Collection efficiency: 98 – 99.5% (weight ratio with filter paper)

• Power consumption: 80 – 1,950 W

• Current: 0.55 – 8.1 A

• Motor output: 0.4 – 0.75 kW (2-pole / 4-pole, inverter control type)

• Maximum density at the inlet: 100 – 200 mg/m³

• Temperature and humidity of service environment: 0 – 40°C, RH 90% or less

• Temperature of intake gas: 0 – 40°C

• Collection target: Oil-based oil mist (flash point ≥ 70°C) / Water-soluble oil mist

• Noise level (50/60Hz): 58 – 66 dB(A)

• Weight: 54 – 212 kg

• Paint color: Munsell No. 5GY8.5/0.5 (body) / Munsell No. N2.5 (motor base)

• Machining centers and CNC lathes

• Grinding, cutting, and milling machines

• Die-casting and forming equipment

• Oil mist and coolant mist recovery systems

• General industrial ventilation and filtration setups

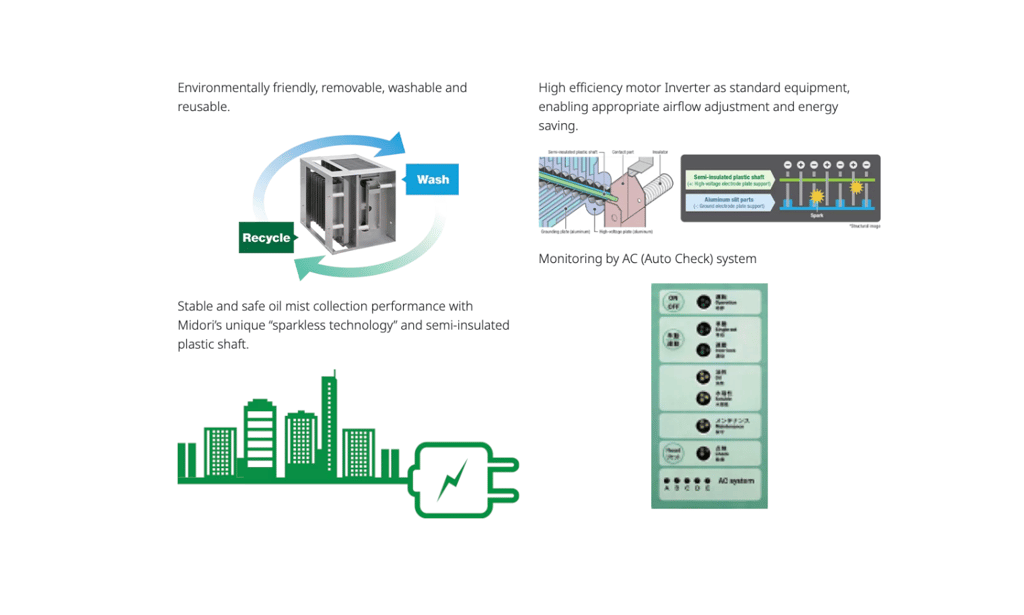

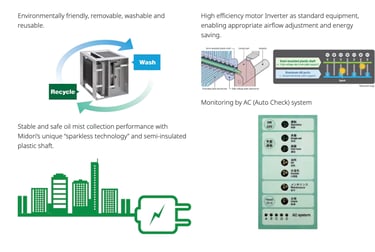

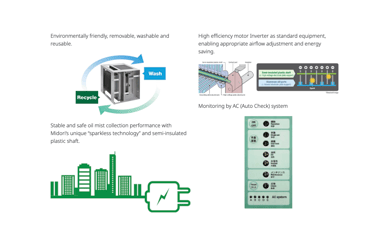

Advantages

• Its eco-friendly design uses removable, washable, and reusable parts to help reduce waste.

• The inverter-controlled, high-efficiency motor delivers precise airflow while lowering energy consumption.

• Midori’s sparkless technology and semi-insulated plastic shaft provide safe and stable performance.

• The built-in AC (Auto Check) system automatically monitors operation to maintain consistent performance.
