TECHNICAL SPECIFICATION

APPLICATION

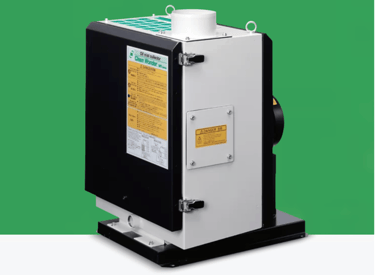

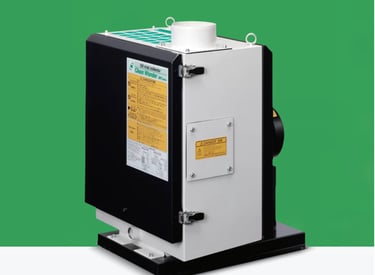

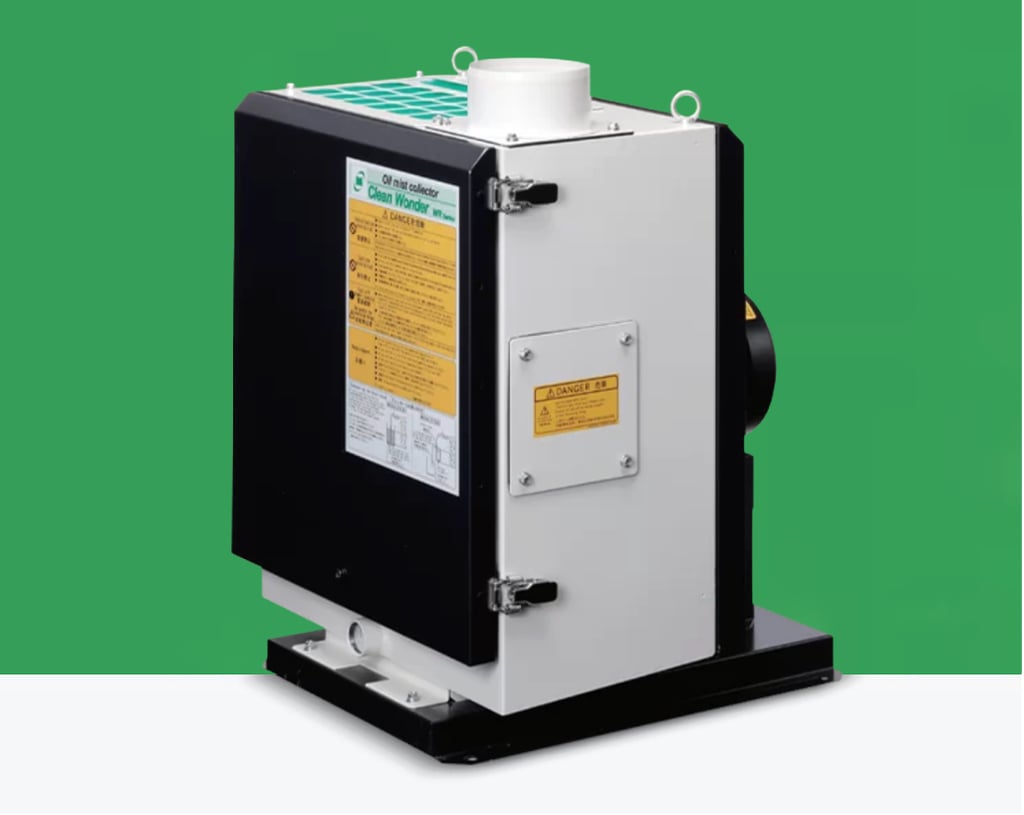

• Model: WR-054J / WR-104J / WR-204J

• Power Supply: Three-phase 200V AC ±10%, 50/60 Hz

• Maximum Air Volume (50/60 Hz): 4.6–15 m³/min

• Maximum Static Pressure (50/60 Hz): 0.8–1.7 kPa

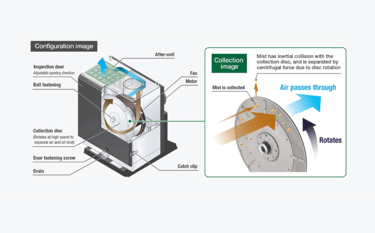

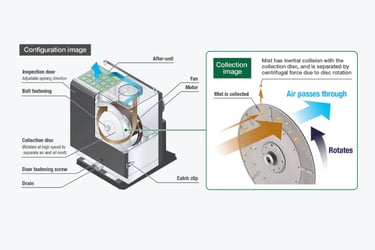

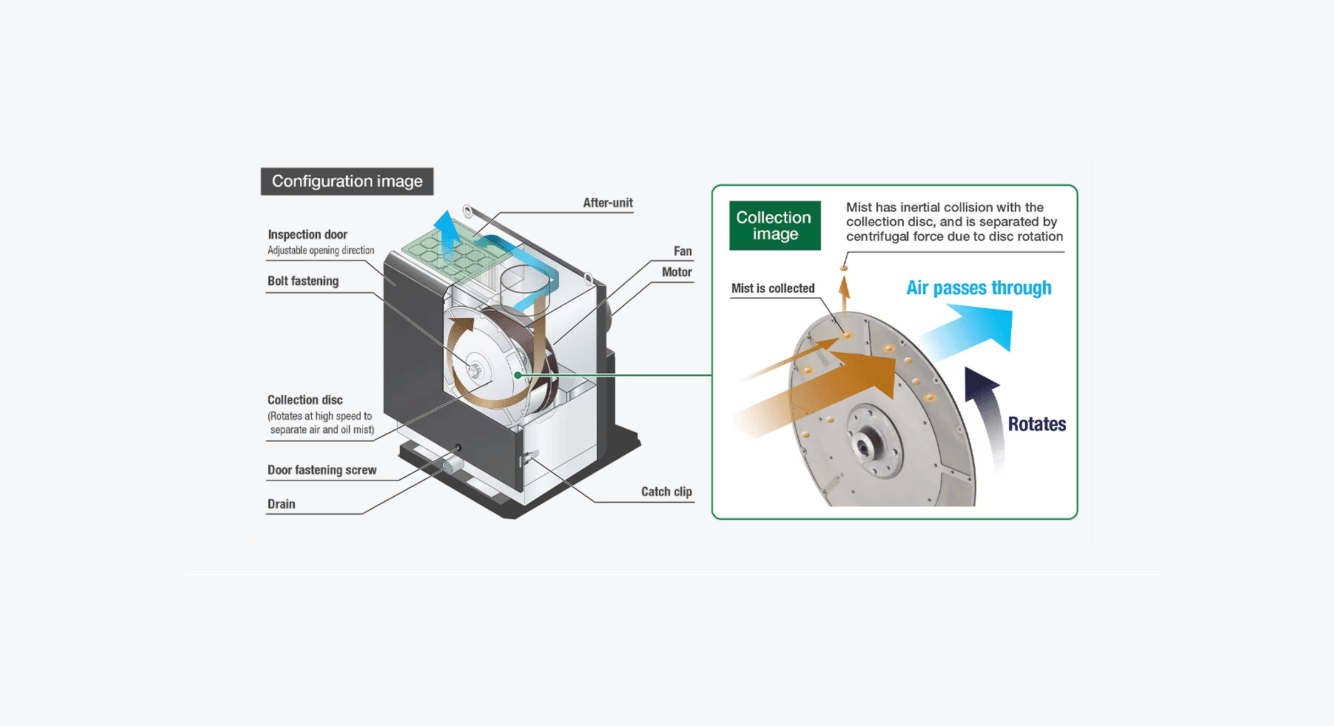

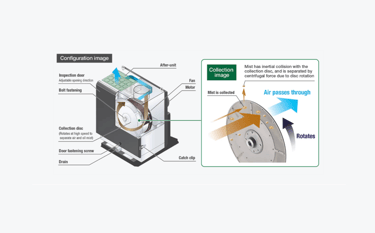

• Collection Method: High-speed rotating disc centrifugation

• Collection Efficiency: 99% (Water-soluble mist)

• Motor Output: 0.4–1.5 kW (IE3 high-efficiency motor)

• Operating Environment: 0–40 °C, RH 90% or less (indoor use)

• Intake Gas Temperature: 0–50 °C

• Maximum Inlet Density: 50 mg/m³ or less

• Inlet Diameter: Ø98–Ø148 mm

• Noise Level (50/60 Hz): 66–75 dB[A]

• Weight: 34–62 kg

• Drain: Rp1" socket

• Collection Disc Outer Diameter: Ø280–Ø360 mm

• Paint Color: Munsell No.5Y9/0.5 (housing) / Munsell No.N2.0 (door, motor base)

• Certification: CE and RoHS compatible

• Machining centers and metal cutting operations using oil-based or water-soluble coolant

• Improving workplace air quality and safety

• Reducing oil mist contamination and fire hazards

Advantages

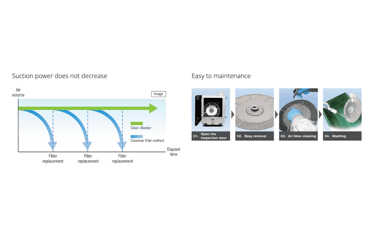

• Stable suction power

• Easy maintenance

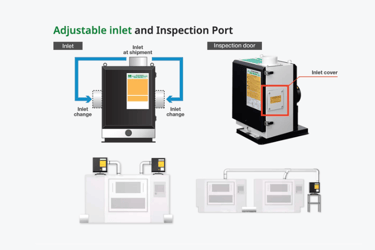

• Adjustable inlet and inspection port
