TECHNICAL SPECIFICATION

APPLICATION

• Clamping Force: 22,000 – 44,000 kN

• Platen Size: 2,160 × 2,160 mm to 2,800 × 2,800 mm

• Space Between Tie Bars: 1,400 – 1,900 mm

• Shot Position: 450 – 600 mm

• Maximum Casting Force: 1,500 – 2,800 kN

• Injection Plunger Diameter: 90 – 200 mm

• Casting Stroke: 1,200 – 1,400 mm

• Casting Volume: 2,431 – 29,322 cm³

• Specific Injection Pressure: 2,110 – 2,355 daN/cm²

• Casting Area: 1,720 – 9,435 cm²

• Machine Weight (approx.): 135,000 – 192,000 kg

• Machine Dimensions (L×W×H): 12,600 × 5,400 × 4,700 mm to 14,500 × 5,800 × 6,300 mm

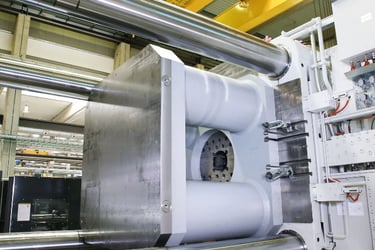

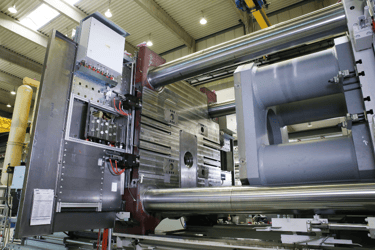

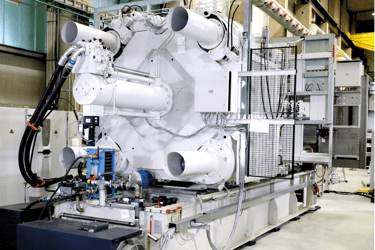

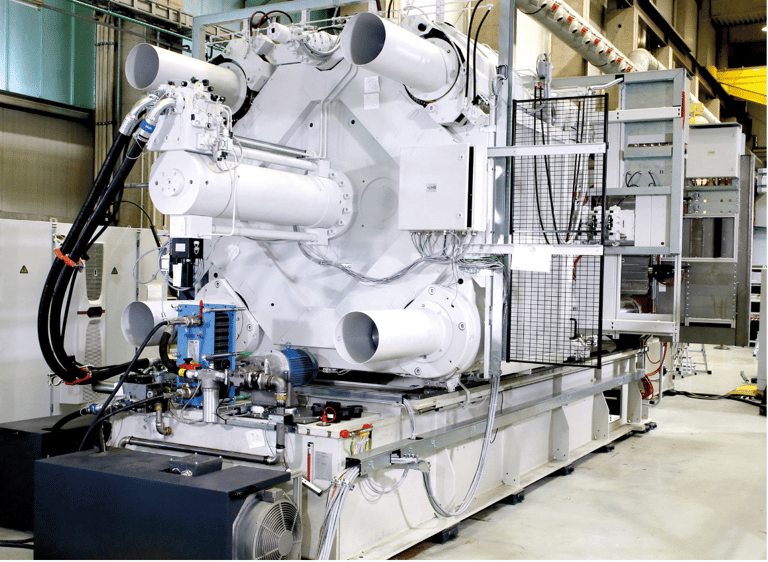

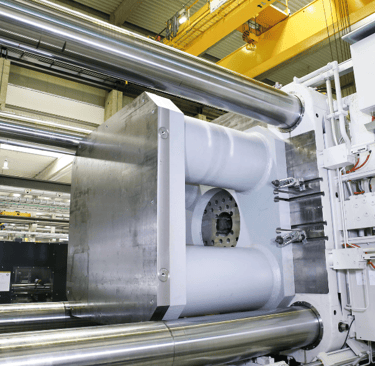

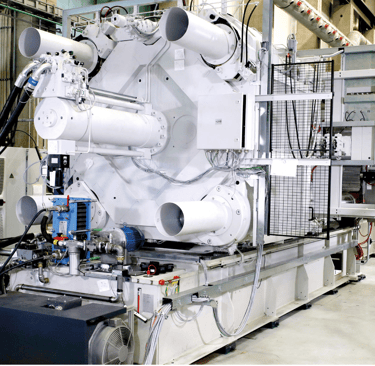

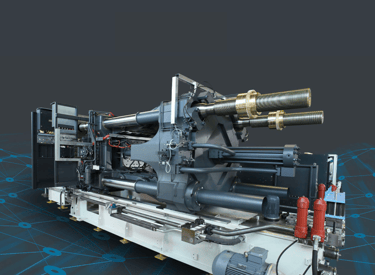

• Large die-casting machines engineered for high-speed and high-precision production.

• Suitable for manufacturing complex aluminum components such as engine blocks, transmission housings, and structural parts for the automotive and industrial sectors.
