TECHNICAL SPECIFICATION

APPLICATION

• Locking Force: 240 – 3,150 kN

• Closing Stroke: 290 – 700 mm

• Ejector Stroke: 50 – 120 mm

• Die Height (min–max): 120 – 700 mm

• Platen Size: 290 × 340 mm to 900 × 900 mm

• Space Between Tie Bars: 250 × 250 mm to 550 × 550 mm

• Shot Position: 0 – 120 mm

• Maximum Casting Force: 85 – 250 kN

• Injection Plunger Diameter: 36 – 100 mm

• Casting Stroke: 85 – 175 mm

• Casting Volume: 47 – 1,455 cm³

• Specific Injection Pressure: 392 – 201 daN/cm²

• Machine Weight (approx.): 3,000 – 12,000 kg

• Machine Dimensions (L×W×H): 3,200 × 1,770 × 2,000 mm to 6,700 × 2,800 × 3,050 mm

• Versatile hot chamber die-casting machines for zinc alloys, combining precision, reliability, and efficiency.

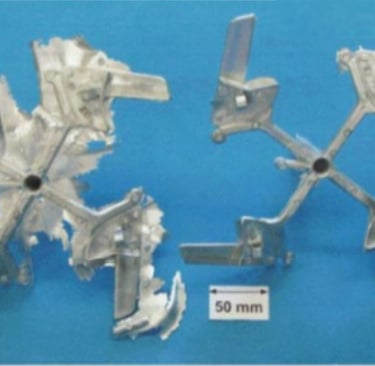

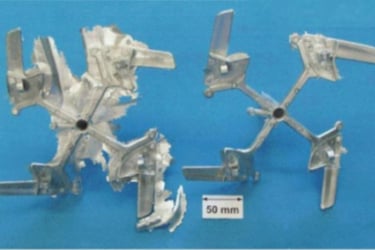

• Ideal for producing components with fine detail, excellent surface finish, and consistent quality—ranging from small electronic and decorative parts to large industrial and automotive castings.
