TECHNICAL SPECIFICATION

APPLICATION

• Locking Force: 240 – 6,500 kN

• Closing Stroke: 180 – 680 mm

• Ejector Force: 28 – 285 kN

• Ejector Stroke: 40 – 160 mm

• Die Height (min–max): 120 – 800 mm

• Platen Size: 380 × 380 mm to 1,120 × 1,120 mm

• Space Between Tie Bars: 250 × 250 mm to 700 × 700 mm

• Tie Bar Diameter: 45 – 140 mm

• Shot Position: 0 – 160 mm

• Maximum Casting Force: 43 – 250 kN

• Casting Stroke: 85 – 250 mm

• Injection Plunger Diameter: 36 – 100 mm

• Casting Volume: 47 – 1,455 cm³

• Specific Injection Pressure: 270 – 78 daN/cm²

• Casting Area: 56 – 2,802 cm²

• Carriage Retraction Stroke: 120 – 500 mm

• Machine Weight (approx.): 3,000 – 22,000 kg

• Machine Dimensions (L×W×H): 3,680 × 1,410 × 2,320 mm to 6,550 × 2,640 × 3,500 mm

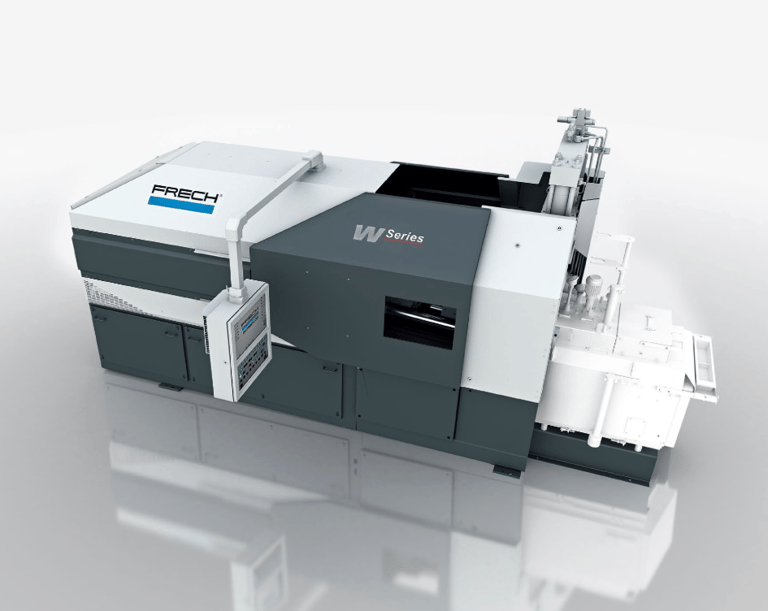

• High-performance hot chamber die casting machines optimized for zinc alloy applications.

• Designed for precision casting of complex, thin-walled components requiring high strength and excellent surface finish.

• Ideal for automotive, hardware, electrical, and consumer goods industries where tight tolerances and production efficiency are essential.
