TECHNICAL SPECIFICATION

APPLICATION

• Compact design (Ø18 mm), 30% smaller than standard systems

• Push fitting connection for quick and secure installation

• 360° revolving IN/OUT channel for flexible setup

• Material: Full SUS 304 construction with Viton O-rings

• Inner pipe wall thickness: 0.5 mm per side

• Secure coupler lock to prevent accidental detachment

• Maximum Working Pressure:
  Pipe 1/4 – 25–35 MPa
  Pipe 3/8 – 35–45 MPa

• Maximum Fluid Temperature: below 250 °C

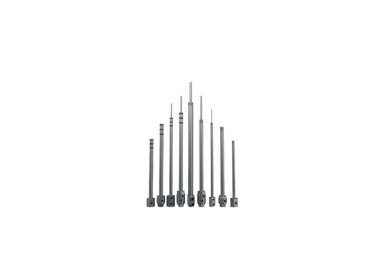

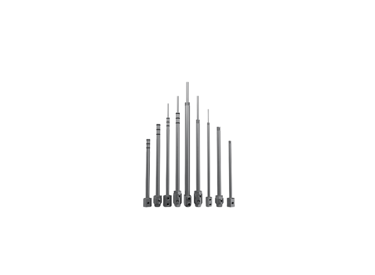

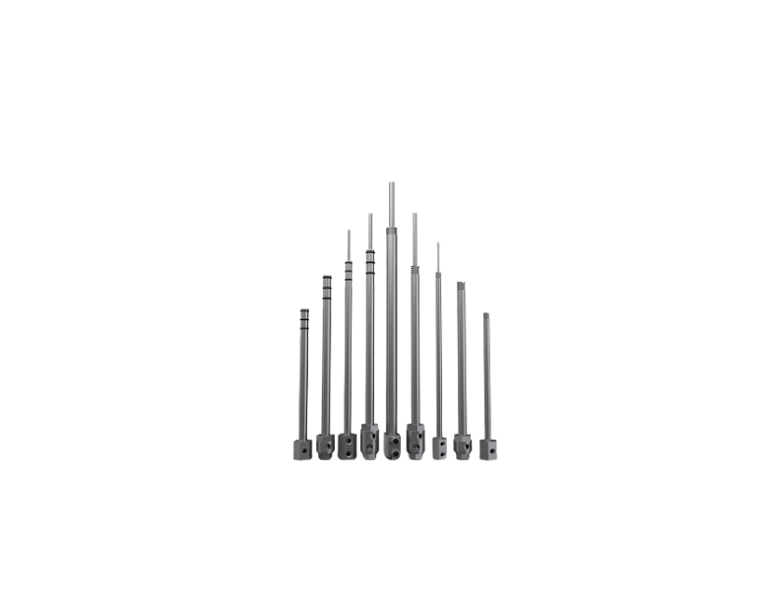

• Designed for localized cooling of small or specific zones in die casting molds.

• Ideal for achieving rapid heat dissipation, improved dimensional precision, and extended mold lifespan.

ADVANTAGES

• Thin inner pipe wall (0.5 mm per side) for efficient heat transfer

• Coupler locking mechanism prevents accidental disconnection

• Easy maintenance and service-friendly design
