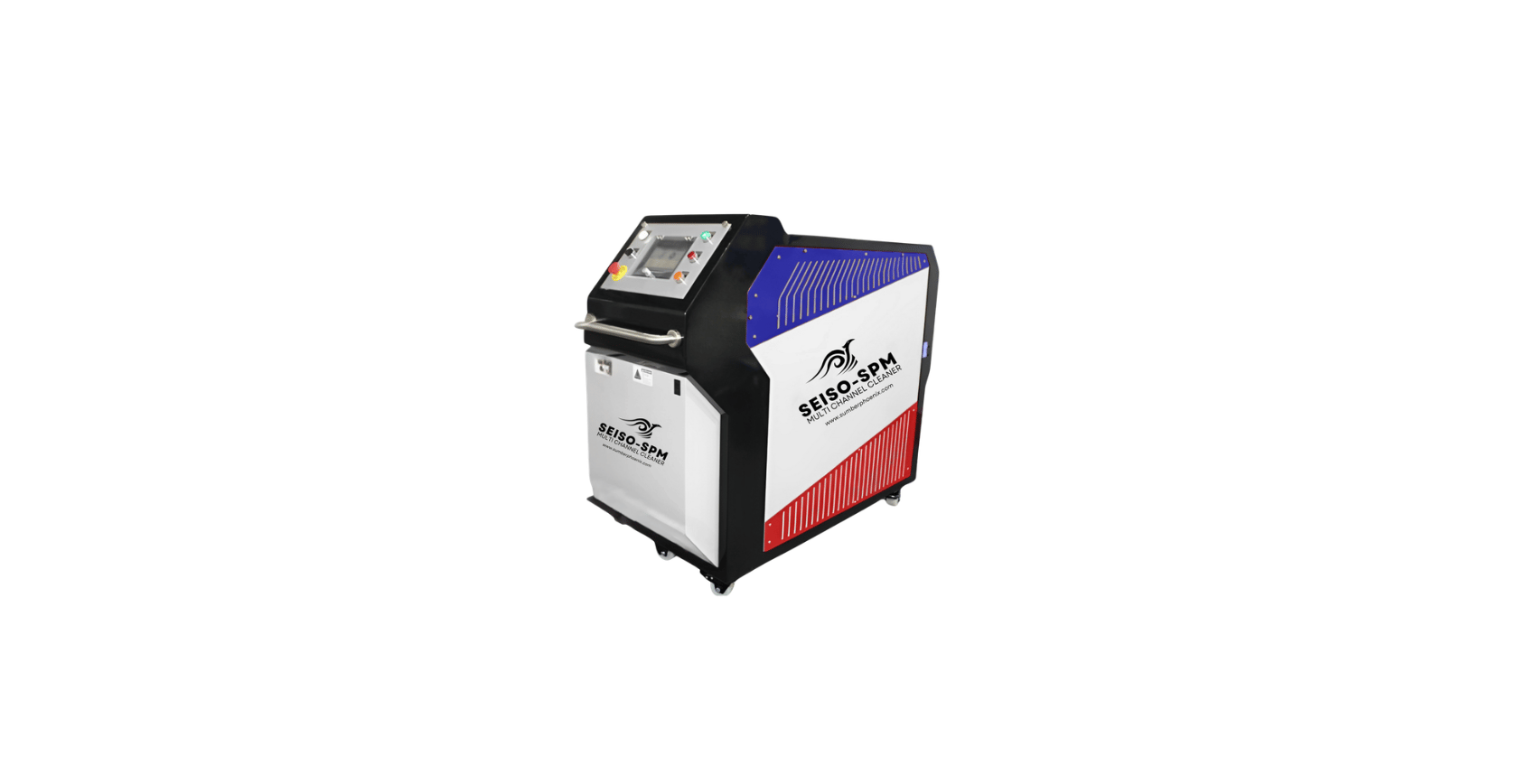

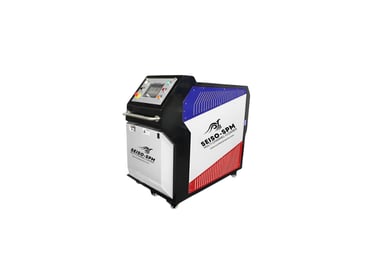

TECHNICAL SPECIFICATION

APPLICATION

• Industrial control system by Mitsubishi: 1.5 kW – 5.5 kW

• Flow meter by Keyence: FD Series

• Electronic pulse controller by Kitz: C-UTE Series

• Air pump by SMC: VBA Series

• Water pump by CNP/Grundfos: 1.5 kW – 5.5 kW

• Water tank configuration:

  6 in / 6 out, 2 groups

  1 in / 1 out, 1–2 groups

• Machine size: 1600 × 500 × 1300 mm to 1700 × 600 × 1350 mm

• Cleaning medium: Water or cleaning agent

• Weight: 270 kg – 380 kg

• Suitable for injection molding machines: <500T up to >2500T

• Injection mold water channels

• PET preform molds

• Die-casting mold cooling circuits

• Hot runner systems

• Mold temperature control units (TCUs)

• Industrial chillers

• Rollers and thermal control lines

• Air conditioners and air compressors

• Heat treatment systems

• Heat exchangers and other thermal fluid circuits

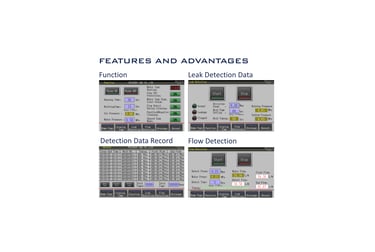

FEATURES

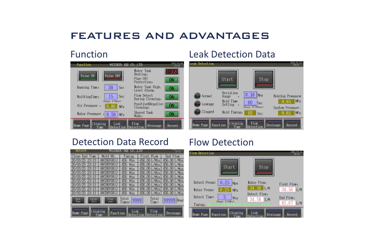

• Touchscreen operation

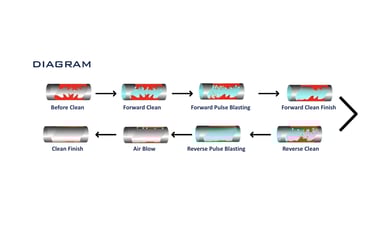

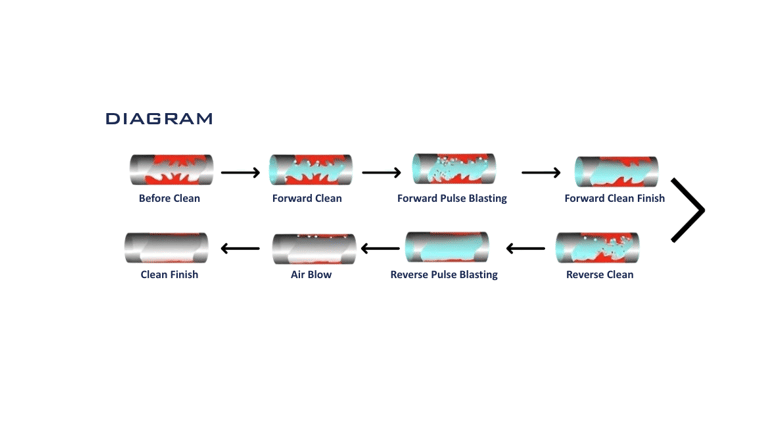

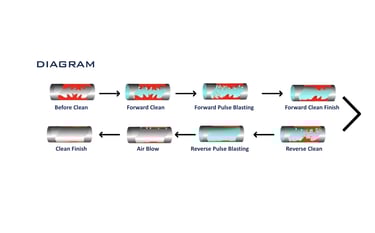

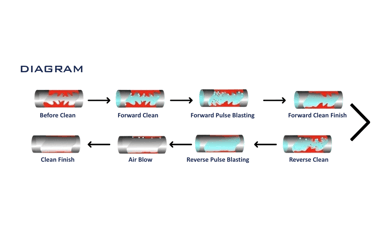

• Forward & reverse cleaning

• Continuous pulse mode

• Leakage testing function

• Pressure monitoring

• Digital flow recording

• Automatic blow-dry

• Water-level alarm

• Programmable time control

• SUS304 tank (stainless steel)
