ADIABATIC COOLING SYSTEM

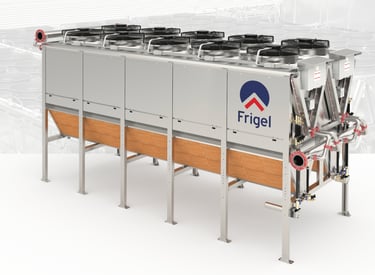

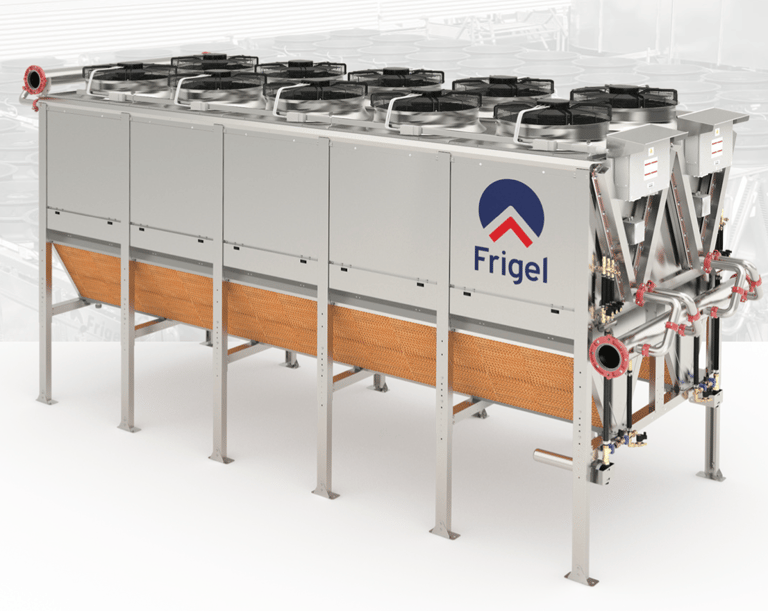

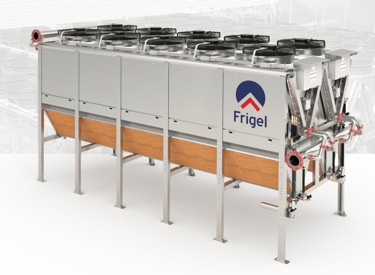

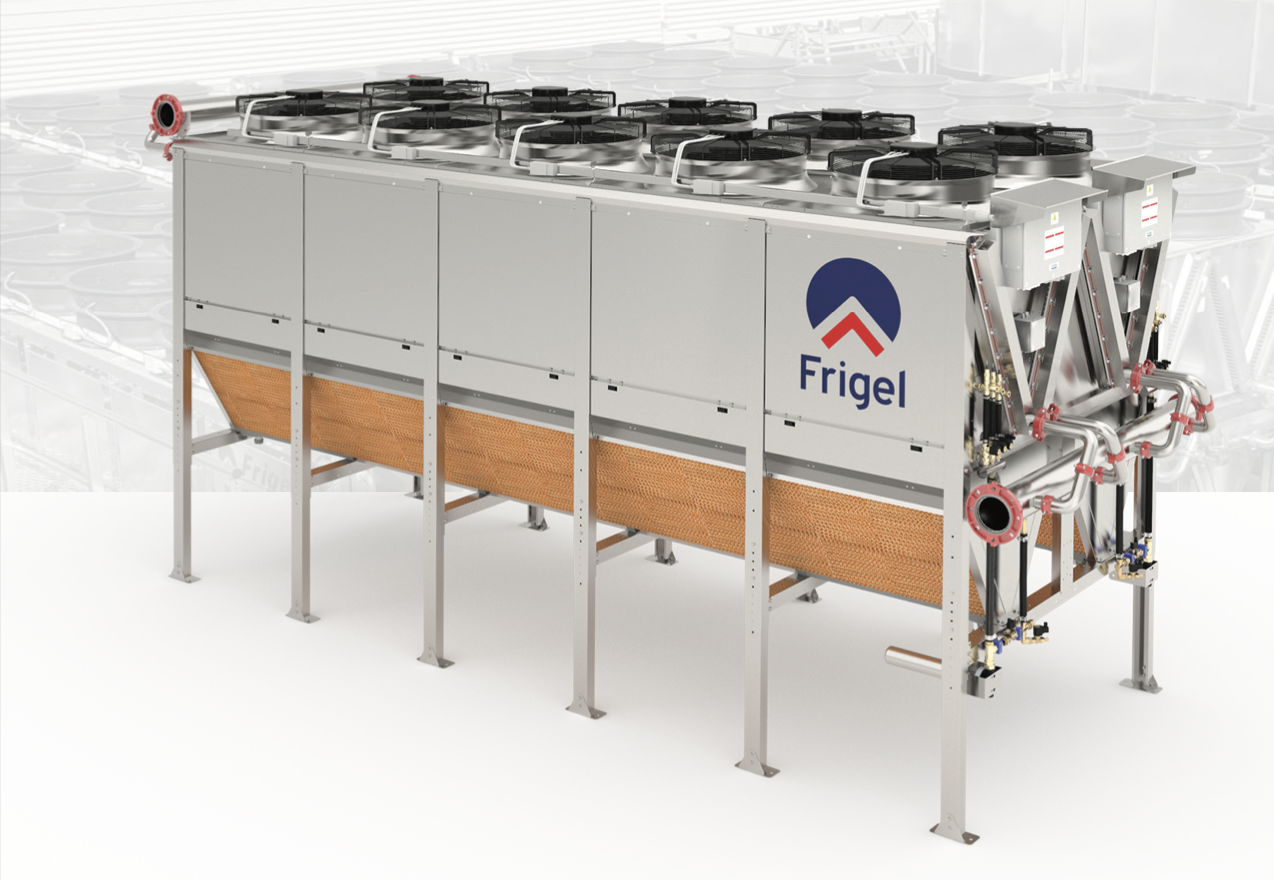

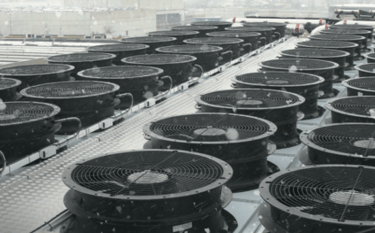

Ecodry 3DK

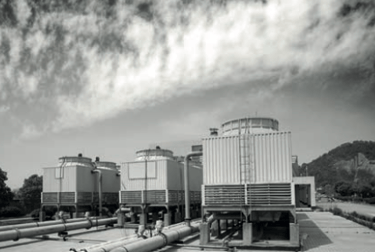

Ecodry is a closed-loop adiabatic cooler that replaces evaporative cooling towers, cutting water use by up to 95%. It delivers clean, reliable cooling in extreme climates without chemicals or Legionella risk. With stable heat-transfer efficiency and minimal maintenance, Ecodry ensures safer operation and significantly lower-operating costs.

MACHINERY

TECHNICAL SPECIFICATION

APPLICATION

Cooling Capacity: 50 – 10,000 kW
Process Water Temperature: 30 – 35 °C
Process Water Flow Rate: 10 – 2,000 m³/h
Operating Temperature Range: –40 °C to +50 °C
Design Type: Centralized closed-circuit adiabatic cooler
Heat Exchanger: Copper tubes with aluminum fins (hydrophilic coated)

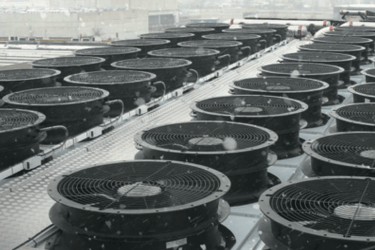

Fan System: Axial, DC brushless, inverter-driven
Structure: Stainless steel frame with aluminum access panels
Configuration: Modular, drainable design for freeze prevention

Die-casting and foundry cooling systems
Industrial process water cooling
Centralized plant thermal management
High-efficiency systems with reduced environmental impact
